Firefighters' Data Requirements Ontology

Release 15/07/2022

This version:
https://purl.org/ffdr-ontology/1.0.0
Latest version:
https://purl.org/ffdr-ontology/2.0.0
Revision:
V 1.0.0
Authors:
Eyosias Guyo, Technische Universität Berlin, Trimble Solutions Oy
Timo Hartmann, Technische Universität Berlin
Download serialization:
JSON-LD RDF/XML N-Triples TTL
License:
http://insertlicenseURIhere.org
Publication:
Guyo, E.D., Hartmann, T., Snyders, S. (2023). An ontology to represent firefighters data requirements during building fire emergencies. Advanced Engineering Informatics. doi:10.1016/j.aei.2023.101992
Cite as:
Eyosias Guyo,Timo Hartmann. Firefighters' Data Requirements Ontology. Revision: V 1.0.0. Retrieved from: https://purl.org/ffdr-ontology/1.0.0
Ontology Specification Draft

Abstract back to ToC

Firefighters require accurate and timely information regarding a building and its environment to perform their duty safely and effectively during a fire emergency. However, due to the chaotic nature of building fires, firefighters often receive erroneous, conflicting, or delayed information that can affect the outcome of a hazard. In this paper, we propose a solution in the form of an ontology that defines building and environmental data needed by firefighters during a building fire emergency. The ontology can be a basis for developing intelligent tools and systems that collect building and environmental data from different data sources and provide comprehensive information to firefighters. It can also facilitate the data exchange process between the different personnel involved in emergency response. The ontology was developed by following the METHONTOLOGY method, and it was implemented using the web ontology language (OWL) in Protégé 5.5.0.

Introduction back to ToC

Firefighters employ different strategies to safeguard occupants, reduce property damage, and protect themselves during building fires. They devise their strategy based on the best available information they have at any given time (OSHA, 2015). Hence, the availability and quality of information play a vital role in the outcome of an emergency. Additionally, Firefighters should be made aware of any hazards or obstacles they may come across outside or inside the affected building ahead of time. The success of a firefighting strategy relies on providing the correct information and resources to the right people at the right time (Xu and Zlatanova, 2007).

Intelligent tools and systems that collect required data about an affected building and its surrounding from different data sources can assist firefighters in conducting their tasks with the utmost safety and effectiveness. However, before designing such systems, we need to have a well-defined understanding of firefighters’ data requirements. Ontologies can be used to establish such understanding. They enable us to develop machine-understandable definitions of different concepts in a given domain along with their relationships (Noy and McGuinness, 2001). Through ontologies, a shared understanding of a domain between people and systems can be established (Neto et al., 2021).

In this documentation, we present an ontology that models firefighters’ data requirements. The ontology will represent the data firefighters require regarding different elements and features inside an affected building and its surrounding. The ontology can then be used to design systems that gather and integrate data from different data sources and provide comprehensive information to firefighters during building fires. Having a well-defined data requirement will also facilitate the data exchange process through various mediums between the different personnel involved in the emergency response (Jones et al., 2005). Understanding how first responders interact with building features can also assist building designers in designing structures that ensure firefighters’ safety and provide necessary firefighting features (OSHA, 2015).

Table 1: Ontology specification document.
Requirements Descriptions
Domain Building fire emergency
Purpose Building an ontology to represent data regarding several features and components of a building and its surroundings that firefighters need when responding to building fires.
Scope The focus is on data about an affected building, its different components, and its surrounding.
Intended use The ontology can be a basis for developing tools and systems that gather essential data about a building and its surroundings and provide the collected data to firefighters in an integrated form.

It can also facilitate the data exchange process between different personnel involved in emergency response.

Knowledge source Scientific papers: (Li et al., 2014), (Isikdag, Underwood and Aouad, 2008), (Jones et al., 2005), (Ghodrat et al., 2021), (Santarpia et al., 2019), and (Heron et al., 2003).

Manual: (OSHA, 2015).

International codes: (ICC, 2018a), and (ICC, 2018b).

Firefighters' Data Requirements Ontology: Overview back to ToC

Namespace declarations

Table 2: Namespaces used in the document
ffdr <https://purl.org/ffdr-ontology>
owl <http://www.w3.org/2002/07/owl>
rdf <http://www.w3.org/1999/02/22-rdf-syntax-ns>
terms <http://purl.org/dc/terms>
xml <http://www.w3.org/XML/1998/namespace>
xsd <http://www.w3.org/2001/XMLSchema>
rdfs <http://www.w3.org/2000/01/rdf-schema>

Classes and Properties

This ontology has the following classes and properties.

Classes

Object Properties

Data Properties

Annotation Properties

Named Individuals

Firefighters' Data Requirements Ontology: Description back to ToC

The firefighters’ data Requirement ontology represents concepts regarding the data firefighters need about an affected building, the building’s features, and the building’s surroundings. In protégé, several classes were created to represent different concepts. OWL provides the ObjectProperty feature to represent the relationship between two classes and the DatatypeProperty feature to represent the relationship from a class to a data value (McGuinness and van Harmelen, 2004). We have used both features extensively in the ontology.

In this section, the ontology is described with the help of figures (Figure 1 – 3). In the first two figures, the following convention is used. The red box emphasizes a class, and the yellow boxes represent all other classes related to the class in the red box. Different lines are used to represent different relationships. Solid lines with a black ‘is a’ text indicate subclass relationship. Solid lines with a blue text indicate ObjectProperty relationship between classes, and broken lines with a green text indicate DatatypeProperty relationship from a class to a data value. Lastly, the deep purple blocks indicate instances of a class. Sometimes a thick black arrow is extended from a class to indicate the existence of more information that is not shown in the figure. And a yellow box with three dots is used to indicate the existence of more subclasses.

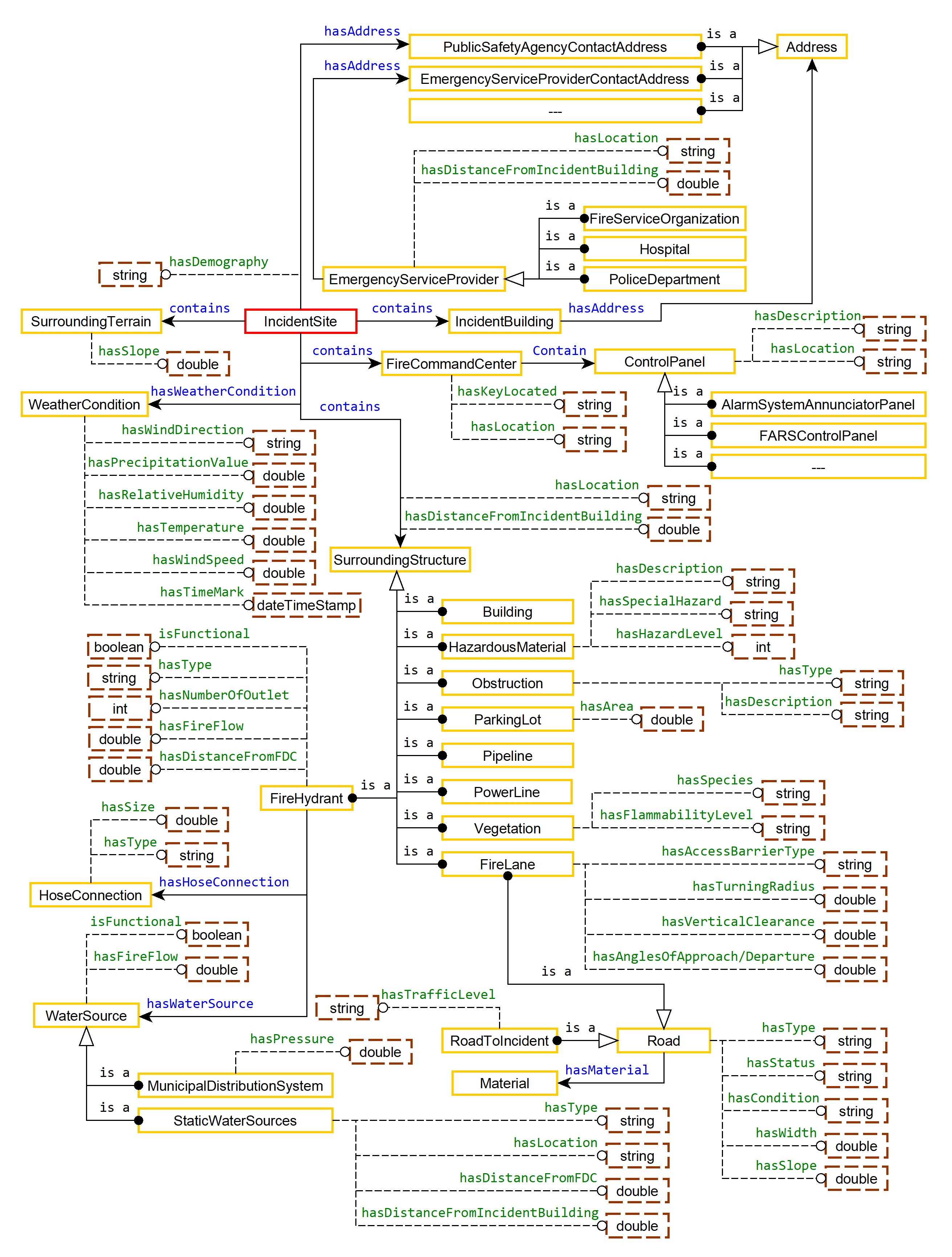

Figure 1: The IncidentSite class, its properties, and its relationship with other classes.

The ontology uses IncidentSite class to represent the site where the building with fire hazard is located. This class is shown in a red box in Figure 1. The class is related to IncidentBuilding, SurroundingTerrain, SurroundingStructure, FireCommandCenter and WeatherCondition classes. The IncidentBuilding class represents the building where the fire hazard occurred. The classes SurroundingTerrain and SurroundingStructure represent the terrain and structures surrounding the incident building, respectively. The FireCommandCenter class is related to the ControlPanel class, which represents the different control panels firefighters would want to locate and use to control several building systems and utilities. The IncidentSite class is also related to the Address class, which captures several types of addresses required during a building emergency.

The SurroundingStructure class represents all artificial and natural structures surrounding the incident building. The subclass of SurroundingStructure represents powerlines, pipelines, hazardous materials, and obstructions such as fences. Vegetation surrounding an incident building is represented using the Vegetation class. A fire lane is an access road designated for the passage of fire apparatus (ICC, 2018b). This class is also a subclass of the Road class. In addition to the fire lane, the Road class represents the road that leads to the incident site (RoadToIncident).

Fire hydrants are essential for most fire suppression operations since they provide access to a water supply system. We modelled information that should be provided to firefighters in advance to locate and connect to a fire hydrant rapidly. The FireHydrant class is related to two classes representing water sources and hose connections. We also connected all other concepts in our ontology related to some form of hose connection to HoseConnection class.

Several information requirements about the incident building are modelled as properties of the IncidentBuilding class. A complete list of the requirements can be seen in Figure 2. The figure also shows the relationship between IncidentBuilding and other classes. These classes include the BuildingOccupancy class, which represents a building’s occupancy based on the international building code (ICC, 2018a), the BuildingComponent class, which represents information about the different components of the building, and the ConstructionType class with its five possible alternatives (ICC, 2018a).

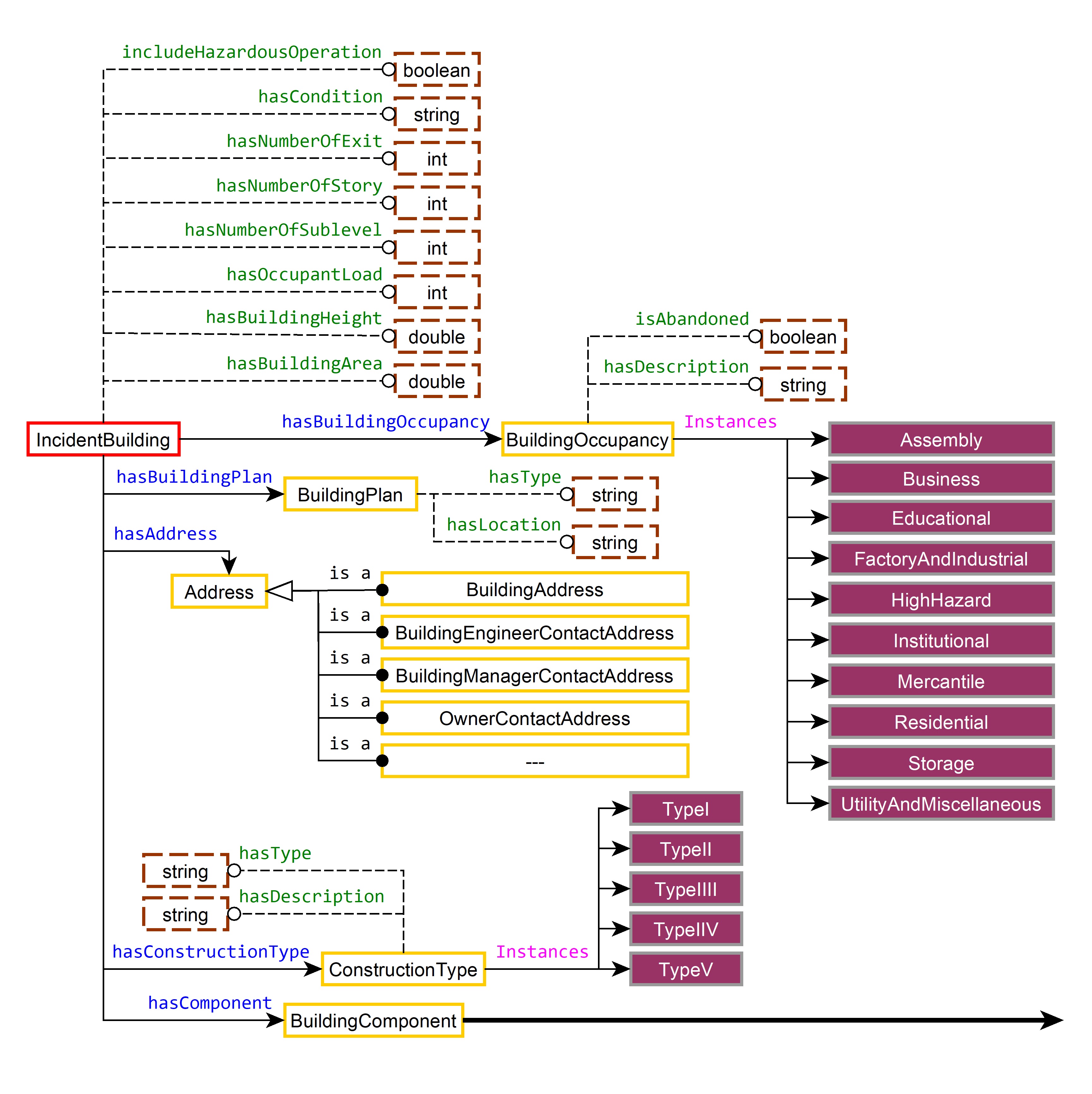

Figure 2: The IncidentBuilding class, its properties, and its relationship with other classes.

The BuildingComponent class has several subclasses representing different building elements and systems firefighters interact with during their operations (see Figure 3(A)). BuildingSafetySystem is the largest subclass of BuildingComponent. Several subclasses are defined for BuildingSafetySystem that capture information about the different fire safety systems found inside buildings. The complete list is shown in Figure 3(B). An automatic fire extinguishing system refers to sprinkler systems or another automatic fire extinguisher system installed in a building. In most buildings, a sprinkler system is separated into coverage zones (OSHA, 2015). This information is valuable to firefighters because the fire can be located based on the active sprinkler zone. The Fire alarm system and other sensors and detectors are also divided into different zones. A standpipe system is a system of pipes in a building that provides water for manual firefighting and, in some cases, to sprinkler systems (OSHA, 2015). A fire department connection (FDC) is an inlet through which firefighters feed water into the standpipe system. In contrast, fire hose connections (FHC) are outlets of the standpipe system inside the building where firefighters can connect their fire hoses (OSHA, 2015).

In addition to safety systems, other building components firefighters may interact with are also captured in the ontology. This includes several building utilities that usually need to be shut down or at least controlled during fire emergencies (OSHA, 2015). Firefighters should also be informed of the location and type of any hazardous material they may come across in the building. Information regarding the façade of an incident building is essential for firefighters. Some rooftop elements could be helpful in some firefighting operations, but they can also cause hazards. For instance, skylights can be used to ventilate a building, but they can also cause firefighters to fall through (OSHA, 2015). Limited information about structural and nonstructural building elements is modelled in the ontology to not overload firefighters with excess information. The complete list of the nonstructural elements (subclasses of NonStructuralElement) is given in Figure 3(C).

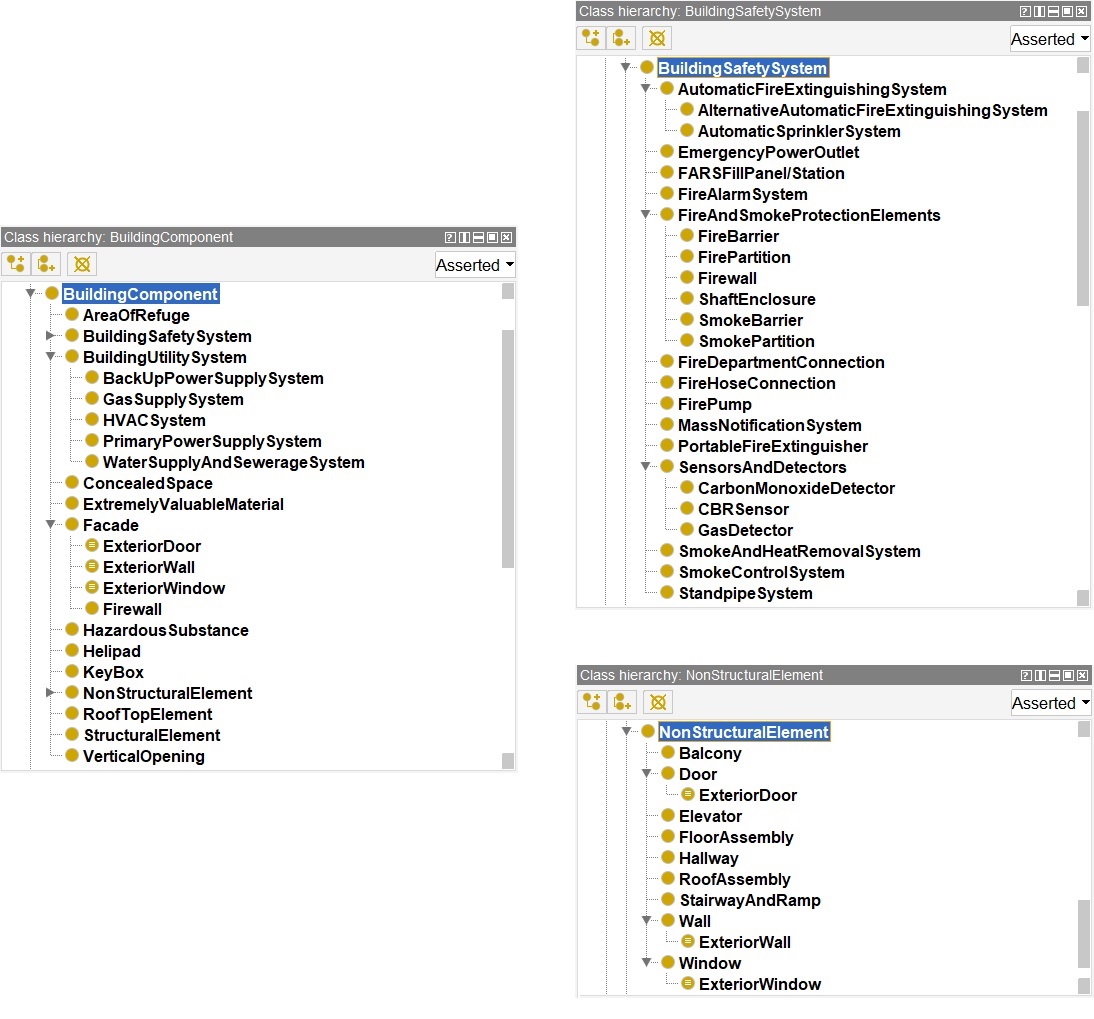

Figure 3: Subclasses of (left) BuildingComponent class, (top right) BuildingSafetySystem class, and (bottom right) NonStructuralElement class.

Cross reference for Firefighters' Data Requirements Ontology classes, properties and dataproperties back to ToC

This section provides details for each class and property defined by Firefighters' Data Requirements Ontology.

Classes

AirSupplyc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#AirSupply

Air supply type: Fire department connection panel (FDCP) or fixed air storage system
has super-classes
is disjoint with
Address c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

AlarmSystemAnnunciatorPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#AlarmSystemAnnunciatorPanel

The 'AlarmSystemAnnunciatorPanel' class represents annunciator panels that display information about the type and location of an active alarm.
has super-classes
ControlPanel c
is disjoint with
DoorUnlockingSystemControlPanel c, ElevatorOverrideControlPanel c, FarsControlPanel c, FireDepartmentCommunicationSystemPanel c, MassNotificationSystemControlPanel c, SmokeControlSystemControlPanel c, UtilityControlPanel c

AlternativeAutomaticFireExtinguishingSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#AlternativeAutomaticFireExtinguishingSystem

The 'AlternativeAutomaticFireExtinguishingSystem' class represents an automatic fire extinguishing system installed in a building instead of a sprinkler system.
has super-classes
AutomaticFireExtinguishingSystem c
is disjoint with
AutomaticSprinklerSystem c

AreaOfRefugec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#AreaOfRefuge

The 'AreaOfRefuge' class represents an area of refuge, which is a protected area in a building where occupants can take refuge during an emergency (NFPA 101).
has super-classes
BuildingComponent c

AutomaticFireExtinguishingSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#AutomaticFireExtinguishingSystem

The 'AutomaticFireExtinguishingSystem' class represents an automatic fire extinguishing system installed in a building.
has super-classes
BuildingSafetySystem c
has sub-classes
AlternativeAutomaticFireExtinguishingSystem c, AutomaticSprinklerSystem c
is in domain of
hasLocationOfControlValve dp, isFireExtinguishingSystemOf op
is in range of
hasFireExtinguishingSystem op
is disjoint with
EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

AutomaticSprinklerSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#AutomaticSprinklerSystem

The 'AutomaticSprinklerSystem' class represents a sprinkler system installed in a building.
has super-classes
AutomaticFireExtinguishingSystem c
is in domain of
isControlValveOn dp
is disjoint with
AlternativeAutomaticFireExtinguishingSystem c

BackUpPowerSupplySystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BackUpPowerSupplySystem

The 'BackUpPowerSupplySystem' class represents a building's backup power supply system.
has super-classes
BuildingUtilitySystem c
is disjoint with
GasSupplySystem c, HvacSystem c, PrimaryPowerSupplySystem c, WaterSupplyandSewerageSystem c

Balconyc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Balcony

The 'Balcony' class represents balconies that may be found in a building.
has super-classes
NonStructuralElement c

Buildingc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Building

The 'Building' class represents buildings other than the incident building.
has super-classes
SurroundingStructure c
is disjoint with
FireHydrant c, FireLane c, HazardousMaterial c, Obstruction c, ParkingLot c, Pipeline c, PowerLine c, Vegetation c

BuildingAddressc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingAddress

The 'BuildingAddress' class represents a building's address.
has super-classes
Address c
is disjoint with
BuildingEngineerContactAddress c, BuildingManagerContactAddress c, EmergencyServiceProviderContactAddress c, OwnerContactAddress c, PublicSafetyAgencyContactAddress c, UtilityContactAddress c

BuildingComponentc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingComponent

The 'BuildingComponent' class represents different building components that firefighters may interact with during a building fire emergency.
has sub-classes
AreaOfRefuge c, BuildingSafetySystem c, BuildingUtilitySystem c, ConcealedSpace c, ExtremelyValuableMaterial c, Facade c, HazardousSubstance c, Helipad c, KeyBox c, NonStructuralElement c, RoofTopElement c, StructuralElement c, VerticalOpening c
is in domain of
isComponentOf op
is in range of
hasComponent op
is disjoint with
Address c, AirSupply c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

BuildingEngineerContactAddressc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingEngineerContactAddress

The 'BuildingEngineerContactAddress' class represents a building engineer's contact address.
has super-classes
Address c
is disjoint with
BuildingAddress c, BuildingManagerContactAddress c, EmergencyServiceProviderContactAddress c, OwnerContactAddress c, PublicSafetyAgencyContactAddress c, UtilityContactAddress c

BuildingManagerContactAddressc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingManagerContactAddress

The 'BuildingManagerContactAddress' class represents a building manager's contact address.
has super-classes
Address c
is disjoint with
BuildingAddress c, BuildingEngineerContactAddress c, EmergencyServiceProviderContactAddress c, OwnerContactAddress c, PublicSafetyAgencyContactAddress c, UtilityContactAddress c

BuildingOccupancyc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingOccupancy

The 'BuildingOccupancy' class represents the purpose of a building based on the classification given in the International Building Code (2018).
is equivalent to
{ Assembly , Business , Educational , FactoryAndIndustrial , HighHazard , Institutional , Mercantile , Residential , Storage , UtilityAndMiscellaneous }
has super-classes
is in domain of
isAbandoned dp, isOccupancyOf op
is in range of
hasOccupancy op
has members
Assembly ni, Business ni, Educational ni, FactoryAndIndustrial ni, HighHazard ni, Institutional ni, Mercantile ni, Residential ni, Storage ni, UtilityAndMiscellaneous ni
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

BuildingPlanc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingPlan

The 'BuildingPlan' class represents building plans such as schematic plans of the building and a fire emergency evacuation plan.
has super-classes
is in domain of
isBuildingPlanOf op
is in range of
hasBuildingPlan op
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

BuildingSafetySystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingSafetySystem

The 'BuildingSafetySystem' class represents components of a building geared towards building safety.
has super-classes
BuildingComponent c
has sub-classes
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

BuildingUtilitySystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#BuildingUtilitySystem

The 'BuildingUtilitySystem' class represents utilities found in a building.
has super-classes
BuildingComponent c
has sub-classes
BackUpPowerSupplySystem c, GasSupplySystem c, HvacSystem c, PrimaryPowerSupplySystem c, WaterSupplyandSewerageSystem c
is in domain of
isUtilityRunning dp

CarbonMonoxideDetectorc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#CarbonMonoxideDetector

The 'CarbonMonoxideDetector' class represents Carbon Monoxide detectors installed in a building.
has super-classes
SensorDetector c
is disjoint with
CbrSensor c, GasDetector c

CbrSensorc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#CbrSensor

The 'CbrSensor' class represents Chemical/Biological/Radiation (CBR) sensors installed in a building.
has super-classes
SensorDetector c
is disjoint with
CarbonMonoxideDetector c, GasDetector c

ConcealedSpacec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ConcealedSpace

The 'ConcealedSpace' class represents concealed spaces that may be found in a building.
has super-classes
BuildingComponent c

ConstructionTypec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ConstructionType

The 'ConstructionType' class represents the construction type of a building. The classification is based on the materials used in a building (whether they are combustible or noncombustible) and the fire resistance of a building's elements (IBC, 2018)
is equivalent to
{ TypeI , TypeII , TypeIII , TypeIV , TypeV }
has super-classes
is in domain of
isConstructionTypeOf op
is in range of
hasConstructionType op
has members
TypeI ni, TypeII ni, TypeIII ni, TypeIV ni, TypeV ni
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

ControlPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ControlPanel

The 'ControlPanel' class represents different control panels used to control several building systems and utilities.
has super-classes
has sub-classes
AlarmSystemAnnunciatorPanel c, DoorUnlockingSystemControlPanel c, ElevatorOverrideControlPanel c, FarsControlPanel c, FireDepartmentCommunicationSystemPanel c, MassNotificationSystemControlPanel c, SmokeControlSystemControlPanel c, UtilityControlPanel c
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

Doorc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Door

The 'Door' class represents doors in a building.
has super-classes
NonStructuralElement c
is in domain of
isPrimaryFireServiceEntryPoint dp

DoorUnlockingSystemControlPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#DoorUnlockingSystemControlPanel

The 'DoorUnlockingSystemControlPanel' class represents a control panel used to unlock some or all doors in a building.
has super-classes
ControlPanel c
is disjoint with
AlarmSystemAnnunciatorPanel c, ElevatorOverrideControlPanel c, FarsControlPanel c, FireDepartmentCommunicationSystemPanel c, MassNotificationSystemControlPanel c, SmokeControlSystemControlPanel c, UtilityControlPanel c

Elevatorc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Elevator

The 'Elevator' class represents elevators that may be found in a building.
has super-classes
NonStructuralElement c
is in domain of
hasMachineRoomLocation dp, isQualifiedForEvacuation dp

ElevatorOverrideControlPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ElevatorOverrideControlPanel

The 'ElevatorOverrideControlPanel' class represents a control panel used to override elevators in a building.
has super-classes
ControlPanel c
is disjoint with
AlarmSystemAnnunciatorPanel c, DoorUnlockingSystemControlPanel c, FarsControlPanel c, FireDepartmentCommunicationSystemPanel c, MassNotificationSystemControlPanel c, SmokeControlSystemControlPanel c, UtilityControlPanel c

EmergencyPowerOutletc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#EmergencyPowerOutlet

The 'EmergencyPowerOutlet' class represents emergency power outlets built into a building that can provide power to electric-operated firefighting equipment (OSHA, 2015).
has super-classes
BuildingSafetySystem c
is disjoint with
AutomaticFireExtinguishingSystem c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

EmergencyServiceProviderc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#EmergencyServiceProvider

The 'EmergencyServiceProvider' class represents emergency service providers involved in a building fire emergency response.
has super-classes
has sub-classes
FireServiceOrganization c, Hospital c, PoliceDepartment c
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

EmergencyServiceProviderContactAddressc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#EmergencyServiceProviderContactAddress

The 'EmergencyServiceProviderContactAddress' class represents different emergency service provider's contact address.
has super-classes
Address c
is disjoint with
BuildingAddress c, BuildingEngineerContactAddress c, BuildingManagerContactAddress c, OwnerContactAddress c, PublicSafetyAgencyContactAddress c, UtilityContactAddress c

ExteriorDoorc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ExteriorDoor

The 'ExteriorDoor' class represents doors found on the exterior of a building.
is equivalent to
Door c and (isExit dp value true)
has super-classes
Facade c
is disjoint with
ExteriorWall c, ExteriorWindow c, Firewall c

ExteriorWallc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ExteriorWall

The 'ExteriorWall' class represents walls found on the exterior of a building.
is equivalent to
Wall c and (isOnExterior dp value true)
has super-classes
Facade c
is disjoint with
ExteriorDoor c, ExteriorWindow c, Firewall c

ExteriorWindowc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ExteriorWindow

The 'ExteriorWindow' class represents windows found on the exterior of a building.
is equivalent to
Window c and (isOnExterior dp value true)
has super-classes
Facade c
is disjoint with
ExteriorDoor c, ExteriorWall c, Firewall c

ExtremelyValuableMaterialc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ExtremelyValuableMaterial

The 'ExtremelyValuableMaterial' class represents extremely valuable materials that may be found in a building.
has super-classes
BuildingComponent c

Facadec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Facade

The 'Facade' class represents the facade of a building.
has super-classes
BuildingComponent c
has sub-classes
ExteriorDoor c, ExteriorWall c, ExteriorWindow c, Firewall c

FarsControlPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FarsControlPanel

The 'FarsControlPanel' class represents a control panel used to control a firefighter's air replenishment system (FARS) that may be found in a building.
has super-classes
ControlPanel c
is disjoint with
AlarmSystemAnnunciatorPanel c, DoorUnlockingSystemControlPanel c, ElevatorOverrideControlPanel c, FireDepartmentCommunicationSystemPanel c, MassNotificationSystemControlPanel c, SmokeControlSystemControlPanel c, UtilityControlPanel c

FarsFillStationc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FarsFillStation

The 'FarsFillStation' class represents firefighter air replenishment system (FARS) filling stations or panels that allow firefighters to replenish their breathing apparatus cylinders (OSHA, 2015).
has super-classes
BuildingSafetySystem c
is in domain of
hasFillPressure dp, hasFillTime dp, hasNumberOfSimultaneousFill dp
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

FireAlarmSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireAlarmSystem

The 'FireAlarmSystem' class represents a fire alarm system installed in a building.
has super-classes
BuildingSafetySystem c
is in domain of
hasTypeOfSignalInitiator dp
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

FireandSmokeProtectionElementc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireandSmokeProtectionElement

The 'FireandSmokeProtectionElement' class represents fire and smoke protection elements that can protect firefighters and building occupants (OSHA, 2015).
has super-classes
BuildingSafetySystem c
has sub-classes
FireBarrier c, FirePartition c, Firewall c, ShaftEnclosure c, SmokeBarrier c, SmokePartition c
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

FireBarrierc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireBarrier

The 'FireBarrier' class represents a fire barrier, which is a fire-resistance-rated wall assembly of materials designed to restrict the spread of fire in which continuity of the wall is maintained (IFC, 2018).
has super-classes
FireandSmokeProtectionElement c
is disjoint with
FirePartition c, Firewall c, ShaftEnclosure c, SmokeBarrier c, SmokePartition c

FireCommandCenterc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireCommandCenter

The 'FireCommandCenter' class represents A fire command center, which is a dedicated room or area where fire protection systems, alarms, and other emergency systems are monitored and controlled (NFPA 72).
has super-classes
is in domain of
hasKeyLocated dp
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

FireDepartmentCommunicationSystemPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireDepartmentCommunicationSystemPanel

The 'FireDepartmentCommunicationSystemPanel' class represents a control panel used to control a fire department communication system that may be found in a building.
has super-classes
ControlPanel c
is disjoint with
AlarmSystemAnnunciatorPanel c, DoorUnlockingSystemControlPanel c, ElevatorOverrideControlPanel c, FarsControlPanel c, MassNotificationSystemControlPanel c, SmokeControlSystemControlPanel c, UtilityControlPanel c

FireDepartmentConnectionc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireDepartmentConnection

The 'FireDepartmentConnection' class represents fire department connections (FDC) through which firefighters pump water into a standpipe system (NFPA 14).
has super-classes
BuildingSafetySystem c
is in domain of
hasDistanceFromWaterSource dp, hasNumberOfInlet dp
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

FireHoseConnectionc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireHoseConnection

The 'FireHoseConnection' class represents fire hose connections which are outlets of a standpipe system where firefighters connect their fire hose (NFPA 14).
has super-classes
BuildingSafetySystem c
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

FireHydrantc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireHydrant

The 'FireHydrant' class represents fire hydrants, which are an important part of a fire suppression operation that provides firefighters with a hose connection to a water supply system (NFPA 24).
has super-classes
SurroundingStructure c
is in domain of
hasNumberOfOutlet dp
is disjoint with
Building c, FireLane c, HazardousMaterial c, Obstruction c, ParkingLot c, Pipeline c, PowerLine c, Vegetation c

FireLanec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireLane

The 'FireLane' class represents a fire lane, which is an access road designated for fire apparatus (NFPA 1).
has super-classes
Road c, SurroundingStructure c
is in domain of
hasAccessBarrierType dp, hasAnglesOfApproach dp, hasTurningRadius dp, hasVerticalClearance dp
is disjoint with
RoadToIncident c, Building c, FireHydrant c, HazardousMaterial c, Obstruction c, ParkingLot c, Pipeline c, PowerLine c, Vegetation c

FirePartitionc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FirePartition

The 'FirePartition' class represents a fire partition, which is a vertical assembly of materials designed to restrict the spread of fire while protecting openings (IFC, 2018).
has super-classes
FireandSmokeProtectionElement c
is disjoint with
FireBarrier c, Firewall c, ShaftEnclosure c, SmokeBarrier c, SmokePartition c

FirePumpc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FirePump

The 'FirePump' class represents fire pumps which are used to boost the water pressure to standpipes and sprinkler systems (OSHA, 2015).
has super-classes
BuildingSafetySystem c
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

FireServiceOrganizationc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FireServiceOrganization

The 'FireServiceOrganization' class represents fire service organizations involved in a building fire emergency response.
has super-classes
EmergencyServiceProvider c
is disjoint with
Hospital c, PoliceDepartment c

Firewallc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Firewall

The 'Firewall' class represents a firewall, which is a fire-resistance-rated wall that restricts the spread of fire while protecting openings and extending continuously from the foundation to or through the roof. It has sufficient structural stability under fire conditions to allow the structure to collapse without the collapse of the wall (IFC, 2018).
has super-classes
Facade c, FireandSmokeProtectionElement c
is disjoint with
ExteriorDoor c, ExteriorWall c, ExteriorWindow c, FireBarrier c, FirePartition c, ShaftEnclosure c, SmokeBarrier c, SmokePartition c

FloorAssemblyc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#FloorAssembly

The 'FloorAssembly' class represents the floor assembly in a building.
has super-classes
NonStructuralElement c

GasDetectorc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#GasDetector

The 'GasDetector' class represents different gas detectors installed in a building.
has super-classes
SensorDetector c
is disjoint with
CarbonMonoxideDetector c, CbrSensor c

GasSupplySystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#GasSupplySystem

The 'GasSupplySystem' class represents a building's gas supply system.
has super-classes
BuildingUtilitySystem c
is disjoint with
BackUpPowerSupplySystem c, HvacSystem c, PrimaryPowerSupplySystem c, WaterSupplyandSewerageSystem c

Hallwayc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Hallway

The 'Hallway' class represents hallways in a building.
has super-classes
NonStructuralElement c

HazardousMaterialc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#HazardousMaterial

The 'HazardousMaterial' class represents any hazardous materials such as gas tanks and chemical storage.
has super-classes
SurroundingStructure c
is disjoint with
Building c, FireHydrant c, FireLane c, Obstruction c, ParkingLot c, Pipeline c, PowerLine c, Vegetation c

HazardousSubstancec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#HazardousSubstance

The 'HazardousSubstance' class represents hazardous substances that may be found in a building.
has super-classes
BuildingComponent c
is in domain of
isDecontaminationRequired dp

Helipadc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Helipad

The 'Helipad' class represents a helipad, which is an area for landing helicopters, that may be available on a building.
has super-classes
BuildingComponent c

HoseConnectionc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#HoseConnection

The 'HoseConnection' class represents different hose connections used by firefighters during building fire emergencies.
has super-classes
is in domain of
hasSize dp, isHoseConnectionOf op
is in range of
hasHoseConnection op
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

Hospitalc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Hospital

The 'Hospital' class represents hospitals.
has super-classes
EmergencyServiceProvider c
is disjoint with
FireServiceOrganization c, PoliceDepartment c

HvacSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#HvacSystem

The 'HvacSystem' class represents a building's heating, ventilation, and air conditioning (HVAC) system.
has super-classes
BuildingUtilitySystem c
is disjoint with
BackUpPowerSupplySystem c, GasSupplySystem c, PrimaryPowerSupplySystem c, WaterSupplyandSewerageSystem c

IncidentBuildingc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#IncidentBuilding

The 'Incidentbuilding' class represents a building with a fire emergency.
has super-classes
is in domain of
hasBuildingArea dp, hasBuildingHeight dp, hasBuildingPlan op, hasComponent op, hasConstructionType op, hasNumberOfExit dp, hasNumberOfStory dp, hasNumberOfSublevel dp, hasOccupancy op, hasOccupantLoad dp, includeHazardousOperation dp
is in range of
isBuildingPlanOf op, isComponentOf op, isConstructionTypeOf op, isOccupancyOf op
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

IncidentSitec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#IncidentSite

The 'IncidentSite' class represents a site where a building fire emergency has occurred.
has super-classes
is in domain of
hasDemography dp, hasWeatherCondition op
is in range of
isWeatherConditionOf op
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

KeyBoxc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#KeyBox

The 'KeyBox' class represents key boxes, which are small vaults placed in a building or nearby that contain keys to a building's doors, elevators, and other rooms (OSHA, 2015).
has super-classes
BuildingComponent c
is in domain of
hasKey dp

MassNotificationSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#MassNotificationSystem

Notification type could be auditory or visual or both.
has super-classes
BuildingSafetySystem c
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

MassNotificationSystemControlPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#MassNotificationSystemControlPanel

The 'MassNotificationSystemControlPanel' class represents a control panel used to control a mass notification system that may be found in a building.
has super-classes
ControlPanel c
is disjoint with
AlarmSystemAnnunciatorPanel c, DoorUnlockingSystemControlPanel c, ElevatorOverrideControlPanel c, FarsControlPanel c, FireDepartmentCommunicationSystemPanel c, SmokeControlSystemControlPanel c, UtilityControlPanel c

Materialc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Material

The 'Material' class represents the constituting materials of different elements.
is in domain of
isMaterialOf op
is in range of
hasMaterial op
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

MunicipalDistributionSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#MunicipalDistributionSystem

The 'MunicipalDistributionSystem' class represents a water distribution system provided and maintained by municipalities or similar entities.
has super-classes
WaterSource c
is in domain of
hasPressure dp
is disjoint with
StaticWaterSource c

NonStructuralElementc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#NonStructuralElement

The 'NonStructuralElement' class represents the non-structural elements of a building.
has super-classes
BuildingComponent c
has sub-classes
Balcony c, Door c, Elevator c, FloorAssembly c, Hallway c, Ramp c, RoofAssembly c, Stairway c, Wall c, Window c
is in domain of
hasID dp

Obstructionc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Obstruction

The 'Obstruction' class represents structures nearby the building, such as fences that can obstruct firefighters' and fire trucks' movement.
has super-classes
SurroundingStructure c
is disjoint with
Building c, FireHydrant c, FireLane c, HazardousMaterial c, ParkingLot c, Pipeline c, PowerLine c, Vegetation c

OwnerContactAddressc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#OwnerContactAddress

The 'OwnerContactAddress' class represents a building owner's contact address.
has super-classes
Address c
is disjoint with
BuildingAddress c, BuildingEngineerContactAddress c, BuildingManagerContactAddress c, EmergencyServiceProviderContactAddress c, PublicSafetyAgencyContactAddress c, UtilityContactAddress c

ParkingLotc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ParkingLot

The 'ParkingLot' class represents parking lots.
has super-classes
SurroundingStructure c
is in domain of
hasArea dp
is disjoint with
Building c, FireHydrant c, FireLane c, HazardousMaterial c, Obstruction c, Pipeline c, PowerLine c, Vegetation c

Pipelinec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Pipeline

The 'Pipeline' class represents pipelines located near an incident building.
has super-classes
SurroundingStructure c
is disjoint with
Building c, FireHydrant c, FireLane c, HazardousMaterial c, Obstruction c, ParkingLot c, PowerLine c, Vegetation c

PoliceDepartmentc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#PoliceDepartment

The 'PoliceDepartment' class represents police departments.
has super-classes
EmergencyServiceProvider c
is disjoint with
FireServiceOrganization c, Hospital c

PortableFireExtinguisherc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#PortableFireExtinguisher

Has different type such as: Air-Water; Air-Foam; Wet Chemical; Dry Chemical Powder; Carbon Dioxide and Vaporising Liquid.
has super-classes
BuildingSafetySystem c
is in domain of
hasFireExtinguisherRating dp
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

PowerLinec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#PowerLine

The 'PowerLine' class represents power lines located near an incident building.
has super-classes
SurroundingStructure c
is disjoint with
Building c, FireHydrant c, FireLane c, HazardousMaterial c, Obstruction c, ParkingLot c, Pipeline c, Vegetation c

PrimaryPowerSupplySystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#PrimaryPowerSupplySystem

The 'PrimaryPowerSupplySystem' class represents a building's primary power supply system.
has super-classes
BuildingUtilitySystem c
is disjoint with
BackUpPowerSupplySystem c, GasSupplySystem c, HvacSystem c, WaterSupplyandSewerageSystem c

PublicSafetyAgencyContactAddressc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#PublicSafetyAgencyContactAddress

The 'PublicSafetyAgencyContactAddress' class represents public safety agencies's contact address.
has super-classes
Address c
is disjoint with
BuildingAddress c, BuildingEngineerContactAddress c, BuildingManagerContactAddress c, EmergencyServiceProviderContactAddress c, OwnerContactAddress c, UtilityContactAddress c

Rampc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Ramp

The 'Ramp' class represents ramps that may be found in a building.
has super-classes
NonStructuralElement c

Roadc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Road

The 'Road' class represents roads.
has super-classes
has sub-classes
FireLane c, RoadToIncident c
is in domain of
hasStatus dp

RoadToIncidentc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#RoadToIncident

The 'RoadToIncident' class represents a road that leads to an incident site.
has super-classes
Road c
is in domain of
hasTrafficLevel dp
is disjoint with
FireLane c, Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, SurroundingStructure c, SurroundingTerrain c, WaterSource c, WeatherCondition c

RoofAssemblyc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#RoofAssembly

The 'RoofAssembly' class represents the roof assembly in a building.
has super-classes
NonStructuralElement c
is in domain of
isAccessible dp

RoofTopElementc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#RoofTopElement

The 'RoofTopElement' class represents roof-top elements, such as skylights, photovoltaic panels, vegetation, and Other Obstructions (cables, wires, ropes).
has super-classes
BuildingComponent c

SensorDetectorc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SensorDetector

The 'SensorDetector' class represents different sensors and detectors installed in a building.
has super-classes
BuildingSafetySystem c
has sub-classes
CarbonMonoxideDetector c, CbrSensor c, GasDetector c
is in domain of
isInAlarm dp
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SmokeControlSystem c, SmokeandHeatRemovalSystem c, StandpipeSystem c

ShaftEnclosurec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#ShaftEnclosure

The 'ShaftEnclosure' class represents a shaft enclosure that protects vertical openings.
has super-classes
FireandSmokeProtectionElement c
is in domain of
isShaftEnclosureOf op
is in range of
hasShaftEnclosure op
is disjoint with
FireBarrier c, FirePartition c, Firewall c, SmokeBarrier c, SmokePartition c

SmokeandHeatRemovalSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SmokeandHeatRemovalSystem

The 'SmokeandHeatRemovalSystem' class represents a smoke and heat removal system that assists firefighters in removing smoke after a fire is extinguished (OSHA, 2015).
has super-classes
BuildingSafetySystem c
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, StandpipeSystem c

SmokeBarrierc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SmokeBarrier

The 'SmokeBarrier' class represents a smoke barrier, which is a continuous vertical or horizontal membrane (such as a wall, floor, or ceiling assembly) that restricts the movement of smoke (IFC 2018).
has super-classes
FireandSmokeProtectionElement c
is disjoint with
FireBarrier c, FirePartition c, Firewall c, ShaftEnclosure c, SmokePartition c

SmokeControlSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SmokeControlSystem

System type could be: smoke exhaust systems and stair pressurization systems
has super-classes
BuildingSafetySystem c
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeandHeatRemovalSystem c, StandpipeSystem c

SmokeControlSystemControlPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SmokeControlSystemControlPanel

The 'SmokeControlSystemControlPanel' class represents a control panel used to control a smoke control system that may be found in a building.
has super-classes
ControlPanel c
is disjoint with
AlarmSystemAnnunciatorPanel c, DoorUnlockingSystemControlPanel c, ElevatorOverrideControlPanel c, FarsControlPanel c, FireDepartmentCommunicationSystemPanel c, MassNotificationSystemControlPanel c, UtilityControlPanel c

SmokePartitionc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SmokePartition

The 'SmokePartition' class represents a smoke partition, which is a wall assembly that limits the transfer of smoke (IFC, 2018).
has super-classes
FireandSmokeProtectionElement c
is disjoint with
FireBarrier c, FirePartition c, Firewall c, ShaftEnclosure c, SmokeBarrier c

Stairwayc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Stairway

The 'Stairway' class represents stairways that may be found in a building.
has super-classes
NonStructuralElement c

StandpipeSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#StandpipeSystem

Properties: has water source: Automatic water supply, manual supply through FDC, Or both has Class: fire service use (Class I), occupant use (Class II), or combined fire service and occupant use (Class III) has type: Wet (automatic or manual) and Dry
has super-classes
BuildingSafetySystem c
is in domain of
hasClass dp, hasIsolationValveLocation dp, isIsolationValveOpen dp
is disjoint with
AutomaticFireExtinguishingSystem c, EmergencyPowerOutlet c, FarsFillStation c, FireAlarmSystem c, FireDepartmentConnection c, FireHoseConnection c, FirePump c, FireandSmokeProtectionElement c, MassNotificationSystem c, PortableFireExtinguisher c, SensorDetector c, SmokeControlSystem c, SmokeandHeatRemovalSystem c

StaticWaterSourcec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#StaticWaterSource

The 'StaticWaterSource' class represents static water sources that can be used for fire suppression.
has super-classes
WaterSource c
is disjoint with
MunicipalDistributionSystem c

StructuralElementc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#StructuralElement

The 'StructuralElement' class represents the structural elements of a building.
has super-classes
BuildingComponent c

SurroundingStructurec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SurroundingStructure

The 'SurroundingStructure' class represents structures surrounding an incident building (the building with a fire emergency).
has super-classes
has sub-classes
Building c, FireHydrant c, FireLane c, HazardousMaterial c, Obstruction c, ParkingLot c, Pipeline c, PowerLine c, Vegetation c
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingTerrain c, WaterSource c, WeatherCondition c

SurroundingTerrainc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#SurroundingTerrain

The 'SurroundingTerrain' class represents terrain surrounding an incident building (the building with a fire emergency).
has super-classes
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, WaterSource c, WeatherCondition c

UtilityContactAddressc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#UtilityContactAddress

The 'UtilityContactAddress' class represents the address of people that manage the utilities in a building.
has super-classes
Address c
is disjoint with
BuildingAddress c, BuildingEngineerContactAddress c, BuildingManagerContactAddress c, EmergencyServiceProviderContactAddress c, OwnerContactAddress c, PublicSafetyAgencyContactAddress c

UtilityControlPanelc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#UtilityControlPanel

The 'UtilityControlPanel' class represents control panels used to control different utilities found in a building.
has super-classes
ControlPanel c
is disjoint with
AlarmSystemAnnunciatorPanel c, DoorUnlockingSystemControlPanel c, ElevatorOverrideControlPanel c, FarsControlPanel c, FireDepartmentCommunicationSystemPanel c, MassNotificationSystemControlPanel c, SmokeControlSystemControlPanel c

Vegetationc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Vegetation

The 'vegetation' class represents vegetation nearby an incident building.
has super-classes
SurroundingStructure c
is in domain of
hasSpecies dp
is disjoint with
Building c, FireHydrant c, FireLane c, HazardousMaterial c, Obstruction c, ParkingLot c, Pipeline c, PowerLine c

VerticalOpeningc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#VerticalOpening

The 'VerticalOpening' class represents vertical Openings that may be found in a building.
has super-classes
BuildingComponent c
is in domain of
hasShaftEnclosure op
is in range of
isShaftEnclosureOf op

Wallc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Wall

The 'Wall' class represents walls in a building.
has super-classes
NonStructuralElement c
is in domain of
hasThickness dp

WaterSourcec back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#WaterSource

The 'WaterSource' class represents different water sources that can be used for fire suppression.
has super-classes
has sub-classes
MunicipalDistributionSystem c, StaticWaterSource c
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WeatherCondition c

WaterSupplyandSewerageSystemc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#WaterSupplyandSewerageSystem

The 'WaterSupplyandSewerageSystem' class represents a building's water supply and sewerage system.
has super-classes
BuildingUtilitySystem c
is disjoint with
BackUpPowerSupplySystem c, GasSupplySystem c, HvacSystem c, PrimaryPowerSupplySystem c

WeatherConditionc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#WeatherCondition

The 'WeatherCondition' class represents weather-related information.
has super-classes
is in domain of
hasPrecipitationValue dp, hasRelativeHumidity dp, hasTemperature dp, hasTimeMark dp, hasWindDirection dp, hasWindSpeed dp, isWeatherConditionOf op
is in range of
hasWeatherCondition op
is disjoint with
Address c, AirSupply c, BuildingComponent c, BuildingOccupancy c, BuildingPlan c, ConstructionType c, ControlPanel c, EmergencyServiceProvider c, FireCommandCenter c, HoseConnection c, IncidentBuilding c, IncidentSite c, Material c, RoadToIncident c, SurroundingStructure c, SurroundingTerrain c, WaterSource c

Windowc back to ToC or Class ToC

IRI: https://purl.org/ffdr-ontology#Window

The 'Window' class represents windows in a building.
has super-classes
NonStructuralElement c
is in domain of
hasHeight dp

Object Properties

containsop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#contains

The 'contains' object property represents a relationship where an entity contains another entity.
has super-properties
top object property
has domain
FireCommandCenter c or IncidentSite c
has range
ControlPanel c or FireCommandCenter c or IncidentBuilding c or SurroundingStructure c or SurroundingTerrain c
is inverse of
isContainedBy op

hasAddressop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasAddress

The 'hasAddress' object property represents a relationship between an entity and its address.
has domain
BuildingUtilitySystem c or EmergencyServiceProvider c or IncidentBuilding c or IncidentSite c
has range
Address c or EmergencyServiceProviderContactAddress c or PublicSafetyAgencyContactAddress c or UtilityContactAddress c
is inverse of
isAddressOf op

hasBuildingPlanop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasBuildingPlan

The 'hasBuildingPlan' object property represents a relationship between a building and its plan.
has domain
IncidentBuilding c
has range
BuildingPlan c
is inverse of
isBuildingPlanOf op

hasComponentop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasComponent

The 'hasComponent' object property represents a relationship between a building and its components.
has domain
IncidentBuilding c
has range
BuildingComponent c
is inverse of
isComponentOf op

hasConnectionWithop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasConnectionWith

The 'hasConnectionWith' object property represents a relationship where two elements or systems are connected.

has characteristics: symmetric

has domain
AutomaticFireExtinguishingSystem c or FireAlarmSystem c
has range
AutomaticFireExtinguishingSystem c or FireAlarmSystem c

hasConstructionTypeop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasConstructionType

The 'hasConstructionType' object property represents a relationship between a building and its construction type.
has domain
IncidentBuilding c
has range
ConstructionType c
is inverse of
isConstructionTypeOf op

hasControlPanelop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasControlPanel

The 'hasControlPanel' object property represents a relationship between a system or an element and its control panel.
has domain
BuildingUtilitySystem c or Door c or Elevator c or FarsFillStation c or FireAlarmSystem c or MassNotificationSystem c or SmokeControlSystem c
has range
AlarmSystemAnnunciatorPanel c or DoorUnlockingSystemControlPanel c or ElevatorOverrideControlPanel c or FarsControlPanel c or MassNotificationSystemControlPanel c or SmokeControlSystemControlPanel c or UtilityControlPanel c
is inverse of
isControlPanelOf op

hasFireExtinguishingSystemop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasFireExtinguishingSystem

The 'hasFireExtinguishingSystem' object property represents a relationship between an area or an element and its fire extinguishing system.
has domain
ConcealedSpace c or Elevator c or Ramp c or Stairway c
has range
AutomaticFireExtinguishingSystem c
is inverse of
isFireExtinguishingSystemOf op

hasHoseConnectionop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasHoseConnection

The 'hasHoseConnection' object property represents a relationship between an element and its hose connection.
has domain
FireDepartmentConnection c or FireHoseConnection c or FireHydrant c
has range
HoseConnection c
is inverse of
isHoseConnectionOf op

hasMaterialop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasMaterial

The 'hasMaterial' object property represents a relationship between an element and the material its made of.
has domain
FireandSmokeProtectionElement c or NonStructuralElement c or Road c or StructuralElement c
has range
Material c
is inverse of
isMaterialOf op

hasOccupancyop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasOccupancy

The 'hasOccupancy' object property represents a relationship between a building and its occupancy.
has domain
IncidentBuilding c
has range
BuildingOccupancy c
is inverse of
isOccupancyOf op

hasShaftEnclosureop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasShaftEnclosure

The 'hasShaftEnclosure' object property represents a relationship between a shaft (vertical opening) and its enclosure.
has domain
VerticalOpening c
has range
ShaftEnclosure c
is inverse of
isShaftEnclosureOf op

hasWaterSourceop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasWaterSource

The 'hasWaterSource' object property represents a relationship between an element or a system and its water source.
has domain
AutomaticSprinklerSystem c or FireDepartmentConnection c or FireHoseConnection c or FireHydrant c or StandpipeSystem c
has range
StandpipeSystem c or WaterSource c
is inverse of
isWaterSourceOf op

hasWeatherConditionop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#hasWeatherCondition

The 'hasWeatherCondition' object property represents a relationship between a site and its weather condition.
has domain
IncidentSite c
has range
WeatherCondition c
is inverse of
isWeatherConditionOf op

isAddressOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isAddressOf

has domain
Address c or EmergencyServiceProviderContactAddress c or PublicSafetyAgencyContactAddress c or UtilityContactAddress c
has range
BuildingUtilitySystem c or EmergencyServiceProvider c or IncidentBuilding c or IncidentSite c
is inverse of
hasAddress op

isBuildingPlanOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isBuildingPlanOf

has domain
BuildingPlan c
has range
IncidentBuilding c
is inverse of
hasBuildingPlan op

isComponentOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isComponentOf

has domain
BuildingComponent c
has range
IncidentBuilding c
is inverse of
hasComponent op

isConstructionTypeOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isConstructionTypeOf

has domain
ConstructionType c
has range
IncidentBuilding c
is inverse of
hasConstructionType op

isContainedByop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isContainedBy

has domain
ControlPanel c or FireCommandCenter c or IncidentBuilding c or SurroundingStructure c or SurroundingTerrain c
has range
FireCommandCenter c or IncidentSite c
is inverse of
contains op

isFireExtinguishingSystemOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isFireExtinguishingSystemOf

has domain
AutomaticFireExtinguishingSystem c
has range
ConcealedSpace c or Elevator c or Ramp c or Stairway c
is inverse of
hasFireExtinguishingSystem op

isHoseConnectionOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isHoseConnectionOf

has domain
HoseConnection c
has range
FireDepartmentConnection c or FireHoseConnection c or FireHydrant c
is inverse of
hasHoseConnection op

isMaterialOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isMaterialOf

has domain
Material c
has range
FireandSmokeProtectionElement c or NonStructuralElement c or Road c or StructuralElement c
is inverse of
hasMaterial op

isOccupancyOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isOccupancyOf

has domain
BuildingOccupancy c
has range
IncidentBuilding c
is inverse of
hasOccupancy op

isShaftEnclosureOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isShaftEnclosureOf

has domain
ShaftEnclosure c
has range
VerticalOpening c
is inverse of
hasShaftEnclosure op

isWaterSourceOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isWaterSourceOf

has domain
StandpipeSystem c or WaterSource c
has range
AutomaticSprinklerSystem c or FireDepartmentConnection c or FireHoseConnection c or FireHydrant c or StandpipeSystem c
is inverse of
hasWaterSource op

isWeatherConditionOfop back to ToC or Object Property ToC

IRI: https://purl.org/ffdr-ontology#isWeatherConditionOf

has domain
WeatherCondition c
has range
IncidentSite c
is inverse of
hasWeatherCondition op

Data Properties

hasAccessBarrierTypedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasAccessBarrierType

Access barrier type could be a gate, bollards, or none.
has domain
FireLane c
has range
string

hasAnglesOfApproachdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasAnglesOfApproach

The 'hasAnglesOfApproach' data property represents a given road's angle of approach or departure.
has domain
FireLane c
has range
double

hasAreadp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasArea

The 'hasArea' data property represents the area of a given space.
has domain
ParkingLot c
has range
double

hasBuildingAreadp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasBuildingArea

The 'hasBuildingArea' data property represents a building's area.
has domain
IncidentBuilding c
has range
double

hasBuildingHeightdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasBuildingHeight

The 'hasBuildingHeight' data property represents a building's height.
has domain
IncidentBuilding c
has range
double

hasCapacitydp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasCapacity

The 'hasCapacity' data property represents the number of people a given area or room can support.
has domain
AreaOfRefuge c or Balcony c or Elevator c or Hallway c or Ramp c or Stairway c
has range
int

hasClassdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasClass

The 'hasClass' data property represents the class of a given system.
has domain
StandpipeSystem c
has range
string

hasConditiondp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasCondition

The 'hasCondition' data property represents the state of a given structure.
has domain
IncidentBuilding c or Road c
has range
string

hasCoverageZonedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasCoverageZone

The 'hasCoverageZone' data property represents a zone covered by a given system.
has domain
AutomaticFireExtinguishingSystem c or FireAlarmSystem c or FireDepartmentConnection c or MassNotificationSystem c or SensorDetector c or SmokeControlSystem c or StandpipeSystem c
has range
string

hasDemographydp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasDemography

The 'hasDemography' data property represents the demography of a population at a given location.
has domain
IncidentSite c
has range
string

hasDescriptiondp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasDescription

The 'hasDescription' data property represents a description.
has domain
BuildingOccupancy c or ConcealedSpace c or ConstructionType c or ControlPanel c or HazardousMaterial c or HazardousSubstance c or Obstruction c or RoofTopElement c or VerticalOpening c
has range
string

hasDirectionToExitdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasDirectionToExit

The 'hasDirectionToExit' data property represents the exit direction of a stairway or ramp.
has domain
Ramp c or Stairway c
has range
string

hasDischargeLeveldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasDischargeLevel

The 'hasDischargeLevel' data property represents the level where a stairway, a ramp, or an elevator discharge.
has domain
Elevator c or Ramp c or Stairway c
has range
string

hasDistanceFromFDCdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasDistanceFromFDC

The 'hasDistanceFromFDC' data property represents the distance between a given element and a fire department connection (FDS).
has domain
FireHydrant c or StaticWaterSource c
has range
double

hasDistanceFromIncidentBuildingdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasDistanceFromIncidentBuilding

The 'hasDistanceFromIncidentBuilding' data property represents the distance between a given element and the incident building.
has domain
EmergencyServiceProvider c or StaticWaterSource c or SurroundingStructure c
has range
double

hasDistanceFromWaterSourcedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasDistanceFromWaterSource

The 'hasDistanceFromWaterSource' data property represents the distance between a given element and a water source.
has domain
FireDepartmentConnection c
has range
double

hasEnclosedAreadp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasEnclosedArea

The 'hasEnclosedArea' data property represents an area enclosed and bounded by walls.
has domain
FireBarrier c or FirePartition c or Firewall c or SmokeBarrier c or SmokePartition c
has range
string

hasExitTravelDistancesdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasExitTravelDistances

The 'hasExitTravelDistances' data property represents the distance between a given element and a building exit.
has domain
Door c or Elevator c or Ramp c or Stairway c
has range
double

hasFillPressuredp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasFillPressure

The 'hasFillPressure' data property represents the pressure required to fill a given system or container.
has domain
FarsFillStation c
has range
double

hasFillTimedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasFillTime

The 'hasFillTime' data property represents the time required to fill a given system or container.
has domain
FarsFillStation c
has range
double

hasFireExtinguisherRatingdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasFireExtinguisherRating

The 'hasFireExtinguisherRating' data property represents the rating of a given portable fire extinguisher.
has domain
PortableFireExtinguisher c
has range
string

hasFireFlowdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasFireFlow

The 'hasFireFlow' data property represents the flow rate available at 20 psi (the minimum desired pressure) available for firefighting.
has domain
FireHydrant c or WaterSource c
has range
double

hasFireResistanceRatingdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasFireResistanceRating

The 'hasFireResistanceRating' data property represents the fire-resistance rating of a given element.
has domain
FireandSmokeProtectionElement c or NonStructuralElement c or StructuralElement c
has range
double

hasFlammabilityLeveldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasFlammabilityLevel

The 'hasFlammabilityLevel' data property represents flammable hazard level based on NFPA 704's hazard communication standard. Levels from 0 to 4 0 - Materials that will not burn under typical fire conditions, including intrinsically non-combustible materials such as concrete, stone, and sand. 1 - Materials that must be preheated before ignition can occur. Materials in this degree require considerable preheating, under all ambient temperature conditions, before ignition and combustion can occur. Materials in this degree also include finely divided suspended solids that do not require heating before ignition can occur. 2 - Materials that must be moderately heated or exposed to relatively high ambient temperatures before ignition can occur. Under normal conditions, these materials would not form hazardous atmospheres with air, but under high ambient temperatures or under moderate heating, they could release vapour in sufficient quantities to produce hazardous atmospheres with air. Materials in this degree also include finely divided suspended solids that do not require heating before ignition can occur. 3 - Liquids and solids (including finely divided suspended solids) that can be ignited under almost all ambient temperature conditions. Materials in this degree produce hazardous atmospheres with air under almost all ambient temperatures are readily ignited under almost all conditions. 4 - Materials that rapidly or completely vaporize at atmospheric pressure and normal ambient temperature or that are readily dispersed in air and burn readily. Source: NFPA 704, 2022
has super-properties
hasHazardLevel dp
has domain
HazardousMaterial c or HazardousSubstance c or Vegetation c
has range
int

hasFloorsServeddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasFloorsServed

The 'hasFloorsServed' data property represents the floors served by a given stairway, ramp, or elevator.
has super-properties
top data property
has domain
Elevator c or Ramp c or Stairway c
has range
string

hasHazardLeveldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasHazardLevel

The 'hasHazardLevel' data property represents a hazard level based on NFPA 704's hazard communication standard. Levels from 0 to 4 0-least hazardous 4-most hazardous
has sub-properties
hasFlammabilityLevel dp, hasHealthHazardSeverityLevel dp, hasInstabilityLevel dp
has domain
HazardousMaterial c or HazardousSubstance c or Vegetation c
has range
int or string

hasHealthHazardSeverityLeveldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasHealthHazardSeverityLevel

The 'hasHealthHazardSeverityLevel' data property represents the severity of a health hazard based on NFPA 704's hazard communication standard. Levels from 0 to 4 0 - Materials that, under emergency conditions, would offer no hazard beyond that of ordinary combustible materials 1 - Materials that, under emergency conditions, can cause significant irritation 2 - Materials that, under emergency conditions, can cause temporary incapacitation or residual injury 3 - Material that, under emergency conditions, can cause serious or permanent injury 4 - Materials that, under emergency conditions, can be lethal Source: NFPA 704, 2022
has super-properties
hasHazardLevel dp
has domain
HazardousMaterial c or HazardousSubstance c
has range
int

hasHeightdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasHeight

The 'hasHeight' data property represents the height of a given element.
has domain
Window c
has range
double

hasIDdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasID

The 'hasID' data property represents the ID of a given element.
has domain
NonStructuralElement c
has range
string

hasInstabilityLeveldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasInstabilityLevel

The 'hasInstabilityLevel' data property represents the instability level of a hazard based on NFPA 704's hazard communication standard. Levels from 0 to 4 0 - Materials that in themselves are normally stable, even under fire conditions 1 - Materials that in themselves are normally stable but that can become unstable at elevated temperatures and pressures 2 - Materials that readily undergo a violent chemical change at elevated temperatures and pressures 3 -Materials that in themselves are capable of detonation or explosive decomposition or explosive reaction but that require a strong initiating source or must be heated under confinement before initiation 4 - Materials that in themselves are readily capable of detonation or explosive decomposition or explosive reaction at normal temperatures and pressures. Source: NFPA 704, 2022
has super-properties
hasHazardLevel dp
has domain
HazardousMaterial c or HazardousSubstance c
has range
int

hasIsolationValveLocationdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasIsolationValveLocation

The 'hasIsolationValveLocation' data property represents the location of isolation valves on a standpipe system.
has domain
StandpipeSystem c
has range
string

hasKeydp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasKey

The 'hasKey' data property represents the keys found inside a given element.
has domain
KeyBox c
has range
string

hasKeyLocateddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasKeyLocated

The 'hasKeyLocated' data property represents the location of the keys to a given room.
has domain
FireCommandCenter c
has range
string

hasLocationdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasLocation

The 'hasLocation' data property represents the location of a given element or area.
has domain
AirSupply c or AreaOfRefuge c or BuildingPlan c or ConcealedSpace c or ControlPanel c or EmergencyPowerOutlet c or EmergencyServiceProvider c or ExtremelyValuableMaterial c or FarsFillStation c or FireCommandCenter c or FireDepartmentConnection c or FireHoseConnection c or FirePump c or FireandSmokeProtectionElement c or HazardousSubstance c or Helipad c or KeyBox c or NonStructuralElement c or PortableFireExtinguisher c or RoofTopElement c or SmokeandHeatRemovalSystem c or StaticWaterSource c or StructuralElement c or SurroundingStructure c or VerticalOpening c
has range
string

hasLocationOfControlValvedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasLocationOfControlValve

The 'hasLocationOfControlValve' data property represents the location of the control valves of a given system.
has domain
AutomaticFireExtinguishingSystem c
has range
string

hasMachineRoomLocationdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasMachineRoomLocation

The 'hasMachineRoomLocation' data property represents the location of the machine room of a given elevator system.
has domain
Elevator c
has range
string

hasNumberOfExitdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasNumberOfExit

The 'hasNumberOfExit' data property represents the number of exits a given building has.
has domain
IncidentBuilding c
has range
int

hasNumberOfInletdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasNumberOfInlet

The 'hasNumberOfInlet' data property represents the number of inlets a given connection has.
has domain
FireDepartmentConnection c
has range
int

hasNumberOfOutletdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasNumberOfOutlet

The 'hasNumberOfOutlet' data property represents the number of outlets a given connection has.
has domain
FireHydrant c
has range
int

hasNumberOfSimultaneousFilldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasNumberOfSimultaneousFill

The 'hasNumberOfSimultaneousFill' data property represents the number of simultaneous fills provided by a given fill station or panel.
has domain
FarsFillStation c
has range
int

hasNumberOfStorydp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasNumberOfStory

The 'hasNumberOfStory' data property represents the number of stories in a building.
has domain
IncidentBuilding c
has range
int

hasNumberOfSubleveldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasNumberOfSublevel

The 'hasNumberOfSublevel' data property represents the number of sublevels in a building.
has domain
IncidentBuilding c
has range
int

hasOccupantLoaddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasOccupantLoad

The 'hasOccupantLoad' data property represents the occupant load of a building.
has domain
IncidentBuilding c
has range
int

hasOpeningDirectiondp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasOpeningDirection

The 'hasOpeningDirection' data property represents the opening direction of a given door or window.
has domain
Door c or Window c
has range
string

hasPrecipitationValuedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasPrecipitationValue

The 'hasPrecipitationValue' data property represents precipitation value (drizzling, rain, sleet, snow, ice pellets, graupel, or hail) at a given time.
has domain
WeatherCondition c
has range
double

hasPressuredp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasPressure

The 'hasPressure' data property represents the pressure of a given system.
has domain
MunicipalDistributionSystem c
has range
double

hasRelativeHumiditydp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasRelativeHumidity

The 'hasRelativeHumidity' data property represents the relative humidity at a given time.
has domain
WeatherCondition c
has range
double

hasRequiredMaximumPressuredp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasRequiredMaximumPressure

The 'hasRequiredMaximumPressure' data property represents the maximum pressure required by a given system.
has domain
AutomaticSprinklerSystem c or StandpipeSystem c
has range
double

hasRequiredMinimumPressuredp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasRequiredMinimumPressure

The 'hasRequiredMinimumPressure' data property represents the minimum pressure required by a given system.
has domain
AutomaticSprinklerSystem c or StandpipeSystem c
has range
double

hasSizedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasSize

The 'hasSize' data property represents the size of a given element.
has domain
HoseConnection c
has range
double

hasSlopedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasSlope

The 'hasSlope' data property represents the slope of a given terrain.
has domain
Road c or SurroundingTerrain c
has range
double

hasSpecialHazarddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasSpecialHazard

The 'hasSpecialHazard' data property represents a special type of hazard based on NFPA 704's hazard communication standard.
has super-properties
top data property
has domain
HazardousMaterial c or HazardousSubstance c
has range
string

hasSpeciesdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasSpecies

The 'hasSpecies' data property represents the species of given vegetation.
has domain
Vegetation c
has range
string

hasStatusdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasStatus

The 'hasStatus' data property represents the status of a given structure.
has domain
Road c
has range
string

hasTemperaturedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasTemperature

The 'hasTemperature' data property represents the temperature at a given time.
has domain
WeatherCondition c
has range
double

hasThicknessdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasThickness

The 'hasThickness' data property represents the thickness of a given element.
has domain
Wall c
has range
double

hasTimeMarkdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasTimeMark

The 'hasTimeMark' data property represents a specific time.
has domain
WeatherCondition c
has range
date time stamp

hasTrafficLeveldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasTrafficLevel

The 'hasTrafficLevel' data property represents the traffic level on a given road
has domain
RoadToIncident c
has range
string

hasTurningRadiusdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasTurningRadius

The 'hasTurningRadius' data property represents the inside or outside turning radius of a given road.
has domain
FireLane c
has range
double

hasTypedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasType

The 'hasType' data property represents a type.
has domain
AirSupply c or BuildingPlan c or ConstructionType c or EmergencyPowerOutlet c or FireHydrant c or HoseConnection c or MassNotificationSystem c or Obstruction c or PortableFireExtinguisher c or Road c or RoofTopElement c or SmokeControlSystem c or SmokeandHeatRemovalSystem c or StandpipeSystem c or StaticWaterSource c
has range
string

hasTypeOfSignalInitiatordp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasTypeOfSignalInitiator

Possible types of alarm signal initiator: - Manual pull stations, - Sprinkler flow detectors, - Smoke detector - Heat detectors - Flame detectors - Optical detectors
has domain
FireAlarmSystem c
has range
string

hasVerticalClearancedp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasVerticalClearance

The 'hasVerticalClearance' data property represents the vertical clearance of a given road.
has domain
FireLane c
has range
double

hasWidthdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasWidth

The 'hasWidth' data property represents width.
has domain
Balcony c or Door c or Hallway c or Ramp c or Road c or Stairway c or Window c
has range
double

hasWindDirectiondp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasWindDirection

The 'hasWindDirection' data property represents wind direction at a given time.
has domain
WeatherCondition c
has range
string

hasWindSpeeddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#hasWindSpeed

The 'hasWindSpeed' data property represents wind speed at a given time.
has domain
WeatherCondition c
has range
double

includeHazardousOperationdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#includeHazardousOperation

The 'includeHazardousOperation' data property represents hazardous operations taking place in a given building.
has domain
IncidentBuilding c
has range
boolean

isAbandoneddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isAbandoned

The 'isAbandoned' data property checks whether a given building is abandoned or not.
has domain
BuildingOccupancy c
has range
boolean

isAccessibledp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isAccessible

The 'isAccessible' data property checks whether a given area is accessible or not.
has domain
RoofAssembly c
has range
boolean

isControlValveOndp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isControlValveOn

The 'isControlValveOn' data property checks whether the control valve of a given system is turned on or not.
has domain
AutomaticSprinklerSystem c
has range
boolean

isDecontaminationRequireddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isDecontaminationRequired

The 'isDecontaminationRequired' data property checks whether decontamination is required or not.
has domain
HazardousSubstance c
has range
boolean

isExitdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isExit

The 'isExit' data property checks whether a given element is an exit or not.
has domain
Door c or Ramp c or Stairway c
has range
boolean

isFunctionaldp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isFunctional

The 'isFunctional' data property checks whether a given element or system is functional or not.
has domain
Door c or Elevator c or FireHydrant c or WaterSource c or Window c
has range
boolean

isInAlarmdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isInAlarm

The 'isInAlarm' data property checks whether a given element's or system's alarm is activated or not.
has domain
SensorDetector c
has range
boolean

isIsolationValveOpendp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isIsolationValveOpen

The 'isIsolationValveOpen' data property checks whether the isolation valve of a given element or system is open or not.
has domain
StandpipeSystem c
has range
boolean

isLightweightConstructiondp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isLightweightConstruction

The 'isLightweightConstruction' data property checks whether a given assembly is made of lightweight construction or not.
has domain
FloorAssembly c or RoofAssembly c
has range
boolean

isOnExteriordp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isOnExterior

The 'isOnExterior' data property checks whether a given element is on the exterior of a building or not.
has domain
ExteriorWall c or ExteriorWindow c or Window c
has range
boolean

isPrimaryFireServiceEntryPointdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isPrimaryFireServiceEntryPoint

The 'isPrimaryFireServiceEntryPoint' data property checks whether a given entry is the primary fire service entry point or not.
has domain
Door c
has range
boolean

isQualifiedForEvacuationdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isQualifiedForEvacuation

The 'isQualifiedForEvacuation' data property checks whether an element or system can be used for evacuation or not.
has domain
Elevator c
has range
boolean

isRoofAccessdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isRoofAccess

The 'isRoofAccess' data property checks whether a given element or system can provide access to a roof or not.
has domain
Ramp c or Stairway c
has range
boolean

isShaftwaydp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isShaftway

The 'isShaftway' data property checks whether a given element has a shaft (vertical opening) behind it or not.
has domain
Door c or Window c
has range
boolean

isSystemActivateddp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isSystemActivated

The 'isSystemActivated' data property checks whether a given system is activated or not.
has domain
AutomaticFireExtinguishingSystem c or FireAlarmSystem c or SmokeControlSystem c or SmokeandHeatRemovalSystem c
has range
boolean

isUtilityRunningdp back to ToC or Data Property ToC

IRI: https://purl.org/ffdr-ontology#isUtilityRunning

The 'isUtilityRunning' data property checks whether a given utility is running or not.
has domain
BuildingUtilitySystem c
has range
boolean

Annotation Properties

abstractap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/abstract

creatorap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/creator

descriptionap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/description

languageap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/language

licenseap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/license

titleap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/title

Named Individuals

Assemblyni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#Assembly

The 'Assembly' class represents assembly occupancy, which includes, among others, the use of a building for the gathering of people (IBC, 2018).
belongs to
BuildingOccupancy c

Businessni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#Business

The 'Business' class represents business occupancy, which includes, among others, the use of a building for office, professional or service-type transactions, including storage of records and accounts (IBC, 2018).
belongs to
BuildingOccupancy c

Educationalni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#Educational

The 'Educational' class represents educational occupancy, which includes, among others, the use of a building for educational purposes (IBC, 2018).
belongs to
BuildingOccupancy c

FactoryAndIndustrialni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#FactoryAndIndustrial

The 'FactoryAndIndustrial' class represents factory and industrial occupancy, which includes, among others, the use of a building for: - assembling, - disassembling, - fabricating, - finishing, - manufacturing, - packaging, - repair or - processing operations that are not classified as hazardous or storage occupancy (IBC, 2018).
belongs to
BuildingOccupancy c

HighHazardni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#HighHazard

The 'HighHazard' class represents high-hazard occupancy, which includes, among others, the use of a building that involves the manufacturing, processing, generation, or storage of materials that constitute a physical or health hazard (IBC, 2018).
belongs to
BuildingOccupancy c

Institutionalni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#Institutional

The 'Institutional' class represents institutional occupancy, which includes, among others, the use of a building where supervision is provided to people who may or may not need physical assistance for self-preservation. Additionally, it represents occupancies where the liberty of occupants is restricted (such as correction facilities) (IBC, 2018).
belongs to
BuildingOccupancy c

Mercantileni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#Mercantile

The 'Mercantile' class represents mercantile occupancy, which includes, among others, the use of a building for the display and sale of merchandise (IBC, 2018).
belongs to
BuildingOccupancy c

Residentialni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#Residential

The 'Residential' class represents residential occupancy, which includes, among others, the use of a building for sleeping purposes when not classified as an institutional (IBC, 2018).
belongs to
BuildingOccupancy c

Storageni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#Storage

The 'Storage' class represents storage occupancy, which includes, among others, the use of a building for storage that is not classified as a hazardous occupancy (IBC, 2018).
belongs to
BuildingOccupancy c

TypeIni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#TypeI

belongs to
ConstructionType c
has facts
hasDescription dp "Fire-resistive: types of construction in which the building elements are of noncombustible materials."
hasType dp "Type I"

TypeIIni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#TypeII

belongs to
ConstructionType c
has facts
hasDescription dp "Non-combustible: Walls, partitions, columns, floors, and roofs are noncombustible. However, they provide less fire resistance and do not withstand the effects or spreading of fire as well as Type I."
hasType dp "Type II"

TypeIIIni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#TypeIII

belongs to
ConstructionType c
has facts
hasDescription dp "Ordinary: construction is that type of construction in which the exterior walls are of noncombustible materials and the interior building elements are of any material."
hasType dp "Type III"

TypeIVni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#TypeIV

belongs to
ConstructionType c
has facts
hasDescription dp "(Heavy Timber: type of construction in which the exterior walls are of noncombustible materials and the interior building elements are of solid wood, laminated wood, heavy timber (HT) or structural composite lumber (SCL) without concealed spaces."
hasType dp "Type IV"

TypeVni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#TypeV

belongs to
ConstructionType c
has facts
hasDescription dp "Type of construction in which the structural elements, exterior walls and interior walls are of any materials."
hasType dp "Type V"

UtilityAndMiscellaneousni back to ToC or Named Individual ToC

IRI: https://purl.org/ffdr-ontology#UtilityAndMiscellaneous

The 'Storage' class represents storage occupancy, which includes, among others, the use of a building for storage that is not classified as a hazardous occupancy (IBC, 2018).
belongs to
BuildingOccupancy c

Legend back to ToC

c: Classes
op: Object Properties
dp: Data Properties
ni: Named Individuals

References back to ToC

Acknowledgments back to ToC

The authors would like to thank Silvio Peroni for developing LODE, a Live OWL Documentation Environment, which is used for representing the Cross Referencing Section of this document and Daniel Garijo for developing Widoco, the program used to create the template used in this documentation.

This project is receiving funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement No 860555.
